Asynchronous Programming in iOS

Paul A. Jungwirth

Illuminated Computing

PDX iOS

March 2014

https://github.com/pjungwir/ios-async-talk-xcode

Restaurant Review App

Pulls a list of restaurants from our server.
Runs at app startup, then once an hour.
The HTTP request via NSURLConnection is asynchronous.
The hourly requests start from an NSTimer.

bread

https://github.com/pjungwir/ios-async-talk-xcode

With just one thread

Your app has a "run loop".
Mostly your app is just sitting there.
Event callbacks happen on the main loop.
Everything is one thread, unless you do something special.

Threading primitives

Herding cats

atomic operators
pthread mutexes
NSLock
@synchronized(obj) { }
NSRecursiveLock, NSConditionLock, NSDistributedLock
NSCondition

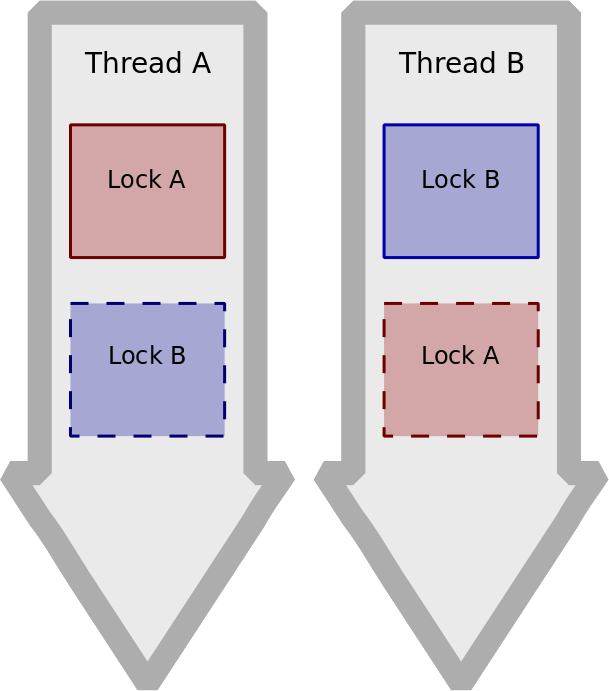

Deadlock

Thread deadlock

Options:

Always take locks in the same order.
Take one big lock.
Don't use locks.

Higher-Level Alternatives

GCD: dispatch_async
NSOperation, NSOperationQueue

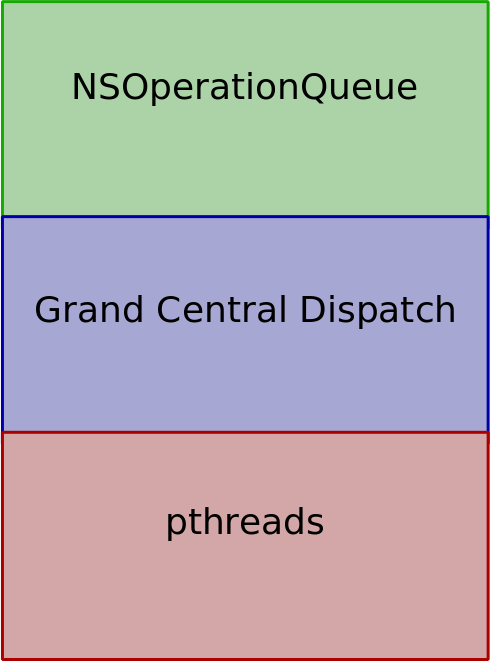

Async abstractions

Rules

UI updates must happen on the main run loop.
Must synchronize read/writes to shared data.
. . . or keep all reads/writes on one thread!

Our Restaurant App

// branch: master

@implementation MyAppDelegate {
  NSArray *_restaurants;
}

- (BOOL) application:(UIApplication *)application
  didFinishLaunchingWithOptions:(NSDictionary *)launchOptions {
  [self fetchRestaurants];
}

// . . .

@end

With a timer

// branch: master

- (BOOL) application:(UIApplication *)application
  didFinishLaunchingWithOptions:(NSDictionary *)launchOptions {
  [self fetchRestaurants];

  [NSTimer scheduledTimerWithTimeInterval:60*60
                                   target:self
                                 selector:@selector(fetchRestaurants)
                                 userInfo:nil
                                  repeats:YES];
  // . . .
}

Sync HTTP Request

// branch: sync

- (void) fetchRestaurants {
  NSURL *url = [NSURL URLWithString:kAPIRestaurantsURL];
  NSURLRequest *req = [NSURLRequest requestWithURL:url];
  NSURLResponse *resp;
  NSError *err;
  NSData *d = [NSURLConnection sendSynchronousRequest:req
                                  returningResponse:&resp
                                              error:&err];
  if (d) {
    self->_restaurants = [MyRestaurant parseJSON:d];
  }
}

Mac beach ball

Async HTTP Request

// branch: async-notification

- (void) fetchRestaurants {
  NSURL *url = [NSURL URLWithString:kAPIRestaurantsURL];
  NSURLRequest *req = [NSURLRequest requestWithURL:url];
  NSOperationQueue *q = [NSOperationQueue mainQueue];
  [NSURLConnection sendAsynchronousRequest:req
                                       queue:q
                             completionHandler:
    ^(NSURLResponse *resp, NSData *d, NSError *err) {
      if (d) {
        self->_restaurants = [MyRestaurant parseJSON:d];
      }
    }];
}

Parsing the JSON

// branch: async-notification

@implementation MyRestaurant {
+ (NSArray *) parseJSON:(NSData *)d {
  NSMutableArray *restaurants = [NSMutableArray new];
  NSError *jsonError = nil;
  NSArray *restFile =
    [NSJSONSerialization JSONObjectWithData:d
                                    options:0
                                      error:&jsonError];
  for (NSDictionary *dict in restFile) {
    MyRestaurant *r = [[MyRestaurant alloc] initWithDictionary:dict];
    [restaurants addObject:r];
  }
  return restaurants;
}

Async parsing with NSOperation

define an operation to do the parsing
add it to the queue
post a notification when done

// branch: async-notification

@implementation MyParseRestaurantsOperation {
    NSData *_data;
}

- (id)initWithData:(NSData *)d {
    if (self = [super init]) {
        self->_data = d;
        return self;
    }
    return nil;
}

- (void)main {
    self.restaurants = [MyRestaurant parseJSON:self->_data];
    [[NSNotificationCenter defaultCenter]
      postNotificationName:@"ParseRestaurantsOperationFinished"
                                                   object:self];
}

@end

Async parsing with NSOperationQueue

// MyAppDelegate.m:
// branch: async-notification

- (void)fetchRestaurants {
    NSURL *url = [NSURL URLWithString:kAPIRestaurantsURL];
    NSURLRequest *req = [NSURLRequest requestWithURL:url];
    NSOperationQueue *q = [NSOperationQueue mainQueue];
    [NSURLConnection sendAsynchronousRequest:req
                                       queue:q
                           completionHandler:
     ^(NSURLResponse *resp, NSData *d, NSError *err) {
         if (d) {
             MyParseRestaurantsOperation *op =
               [[MyParseRestaurantsOperation alloc] initWithData:d];
             [[NSNotificationCenter defaultCenter] addObserver:self
                             selector:@selector(parsedRestaurants:)
                          name:@"ParseRestaurantsOperationFinished"
                                                         object:op];
             NSOperationQueue *background = [NSOperationQueue new];
             [background addOperation:op];
         }
     }];
}

Getting an NSNotification from our queue.

// MyAppDelegate.m:
// branch: async-notification

- (void)parsedRestaurants:(NSNotification *)n {
    [self performSelectorOnMainThread:@selector(updateRestaurants:)
      withObject:((MyParseRestaurantsOperation*)[n object]).restaurants
                                                      waitUntilDone:NO];
}

- (void)updateRestaurants:(NSArray *)restaurants {
    self->_restaurants = restaurants;
    [((MyViewController *)self.window.rootViewController).tableView reloadData];
}

setCompletionBlock to avoid notifications

// MyAppDelegate.m:
// branch: async-completion-block

  MyParseRestaurantsOperation *op =
    [[MyParseRestaurantsOperation alloc] initWithData:d];
  [op setCompletionBlock:^{
    [self performSelectorOnMainThread:@selector(updateRestaurants:)
                                          withObject:op.restaurants
                                                  waitUntilDone:NO];
  }];
  NSOperationQueue *background = [NSOperationQueue new];
  [background addOperation:op];

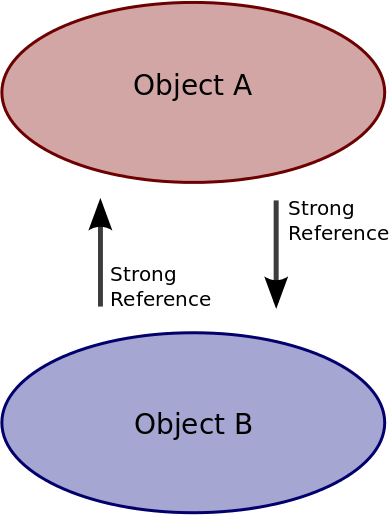

Blocks and retain cycles

https://developer.apple.com/videos/wwdc/2011/

WWDC 2011: Blocks and Grand Central Dispatch in Practice
WWDC 2011: Objective-C Advancements in Depth

If a block is copied, then it retains whatever it closed over.

If you are in turn retaining the block (perhaps indirectly), you have a retain cycle.

Usually it's a problem with self.

Watch out closing over _ivars! (self->_op)

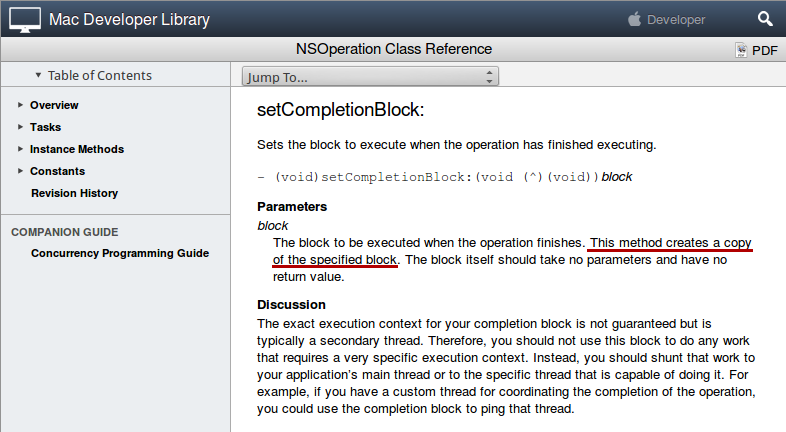

setCompletionBlock copies the block

setCompletionBlock docs

setCompletionBlock without memory leak: "weak-strong dance"

Close over a weak reference.
Give the block its own strong reference.
Make sure the instance didn't disappear in the meantime.

// MyAppDelegate.m:
// branch: async-completion-block

  MyParseRestaurantsOperation *op =
    [[MyParseRestaurantsOperation alloc] initWithData:d];
  __weak MyParseRestaurantsOperation *weakOp = op;

  [d setCompletionBlock:^{
    MyParseRestaurantsOperation *strongOp = weakOp;
    if (!strongOp) return;
    [self performSelectorOnMainThread:@selector(updateRestaurants:)
                                    withObject:strongOp.restaurants
                                                  waitUntilDone:NO];
  }];
  NSOperationQueue *background = [NSOperationQueue new];
  [background addOperation:op];

Block as NSOperation

// MyAppDelegate.m:
// branch: async-block-as-nsoperation

- (void)fetchRestaurants {
    NSURL *url = [NSURL URLWithString:kAPIRestaurantsURL];
    NSURLRequest *req = [NSURLRequest requestWithURL:url];
    NSOperationQueue *q = [NSOperationQueue mainQueue];
    [NSURLConnection sendAsynchronousRequest:req
                                       queue:q
                           completionHandler:
     ^(NSURLResponse *resp, NSData *d, NSError *err) {
         if (d) {
             NSOperationQueue *background = [NSOperationQueue new];
             [background addOperationWithBlock:^{
                 NSArray *restaurants = [MyRestaurant parseJSON:d];
                 [self performSelectorOnMainThread:@selector(updateRestaurants:)
                                                          withObject:restaurants
                                                               waitUntilDone:NO];
             }];
         }
     }];
}

Do the NSURLConnection callback on a different queue

// MyAppDelegate.m:
// branch: async-urlconnection-callback-different-queue

- (void)fetchRestaurants {
    NSURL *url = [NSURL URLWithString:kAPIRestaurantsURL];
    NSURLRequest *req = [NSURLRequest requestWithURL:url];
    NSOperationQueue *q = [NSOperationQueue new];
    [NSURLConnection sendAsynchronousRequest:req
                                       queue:q
                           completionHandler:
     ^(NSURLResponse *resp, NSData *d, NSError *err) {
         if (d) {
             NSArray *restaurants = [MyRestaurant parseJSON:d];
             [self performSelectorOnMainThread:@selector(updateRestaurants:)
                                                      withObject:restaurants
                                                           waitUntilDone:NO];
         }
     }];
}

Async parsing with GCD

Set up a dispatch_queue with GCD:

// branch: async-gcd

@implementation MyAppDelegate {
  NSArray *_restaurants;
  dispatch_queue_t _restaurants_queue;
}

- (BOOL)application:(UIApplication *)application
  didFinishLaunchingWithOptions:(NSDictionary *)launchOptions {
  self->_restaurants_queue = dispatch_queue_create("com.example.restaurants", NULL);
  [self fetchRestaurants];
}

Async parsing with GCD

Do our parsing on our own queue:

// branch: async-gcd

- (void)fetchRestaurants {
  NSURL *url = [NSURL URLWithString:kAPIRestaurantsURL];
  NSURLRequest *req = [NSURLRequest requestWithURL:url];
  NSOperationQueue *q = [NSOperationQueue mainQueue];
  [NSURLConnection sendAsynchronousRequest:req
                                     queue:q
                         completionHandler:
    ^(NSURLResponse *resp, NSData *d, NSError *err) {
      if (d) {
        dispatch_async(self->_restaurants_queue, ^{
          NSArray *restaurants = [MyRestaurant parseJSON:d];
          dispatch_async(dispatch_get_main_queue(), ^{
            self->_restaurants = restaurants;
            [((MyViewController *)self.window.rootViewController).tableView reloadData];
          });
        });
      }
    }];
}

Asynchronous Programming in iOS

Restaurant Review App

With just one thread

Threading primitives

Deadlock

Higher-Level Alternatives

Rules

Our Restaurant App

With a timer

Sync HTTP Request

Async HTTP Request

Parsing the JSON

Async parsing with NSOperation

Async parsing with NSOperationQueue

Getting an NSNotification from our queue.

setCompletionBlock to avoid notifications

Retain Cycles

Blocks and retain cycles

setCompletionBlock copies the block

setCompletionBlock without memory leak: "weak-strong dance"

Block as NSOperation

Do the NSURLConnection callback on a different queue

Async parsing with GCD

Async parsing with GCD

References and Further Reading

Thanks!
